Flow Simulation at Off-Design Conditions



Title :



Investigators :



Partner :



Sponsor :





Flow Simulation at Off-Design Conditions



Kennett, D.J., Hoholis, G. and Badcock, K.J.



BAE Systems



Technology Strategy Board (TSB)



Project Background

The ability of computational fluid dynamics to predict the steady and unsteady fluid flow over the SACCON UCAV configuration, with and without control surface deflections, at off design conditions is investigated. The complex, non-linear flow, various combinations of control surface deflection and the presence of multiple interacting vortices on the flow histories provides a challenging test for current capability. A range of static and dynamic test cases have been computed, for both low and high speed flows, for comparison with experimental data, obtained as part of the NATO STO AVT-201 Task Group. The simulations are performed using a multiblock code to solve the Reynolds-Averaged Navier-Stokes equations; and the control surfaces are modelled with a deformed mesh and blended gaps that simplify the geometry. These tests will provide an assessment of the ability of computational fluid dynamics to evaluate such flows, and will allow for deficiencies in the state of the art to be identified.

Results show that the flow is quite benign at angle of attack 10 degrees, but becomes very non-linear at angles of attack 15 degrees and above. Several vortices are present, which the RANS equations are able to predict, though not necessarily at the correct location or with the correct strength. The SACCON has a rounded leading edge, and so the flow is very sensitive to the turbulence model used, especially in the separation region.

Results

Click on the following images to enlarge the view.

SACCON flow physics at alpha 10 and 15 degrees



SACCON flow physics at alpha 10 and 15 degrees.

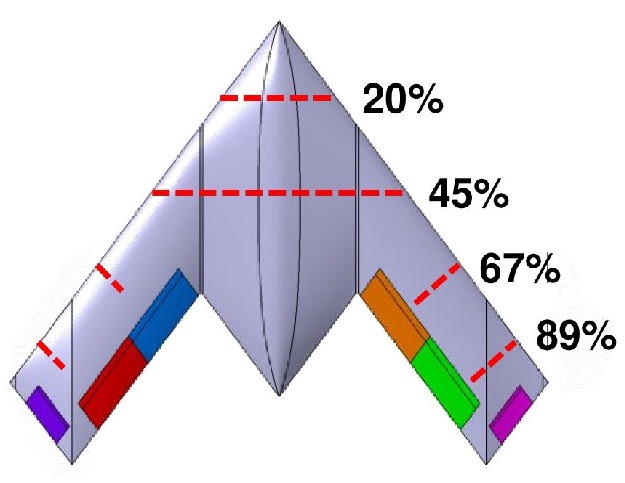

slices



SACCON control surface and pressure coefficient slice location.

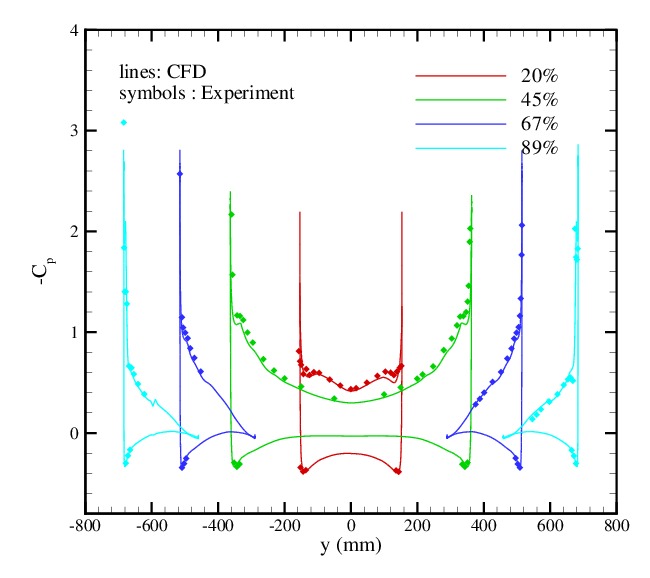

Pressure coefficient at alpha 10 degrees



Pressure coefficient at alpha 10 degrees.

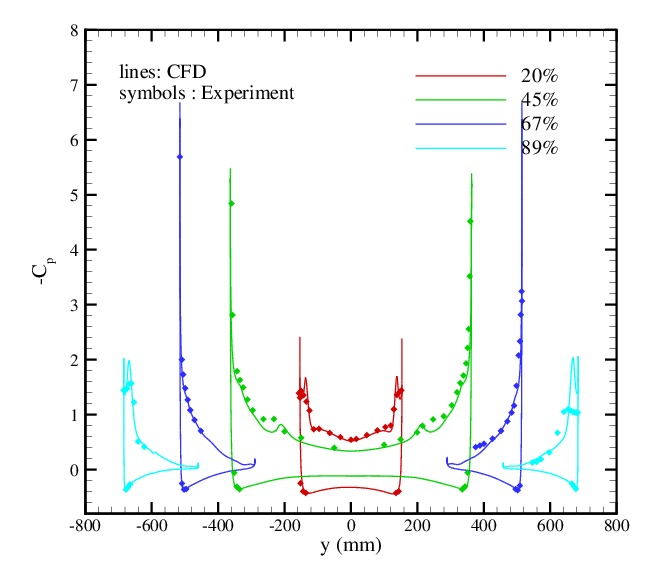

Pressure coefficient at alpha 15 degrees



Pressure coefficient at alpha 15 degrees.

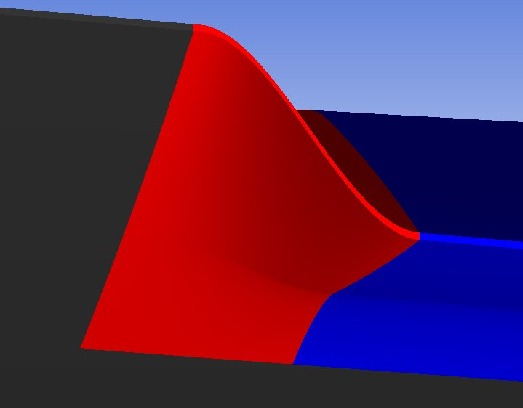

View of blending from below wing



View of blending from below wing.

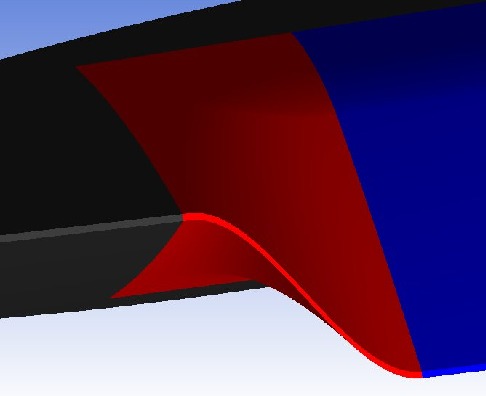

View of blending from above wing



View of blending from above wing.

LIBmin20_RIBplus20



Pressure coefficient with left inboard flap deflection -20 degrees and right inboard flap deflection +20 degrees at alpha 15 degrees angle of attack.

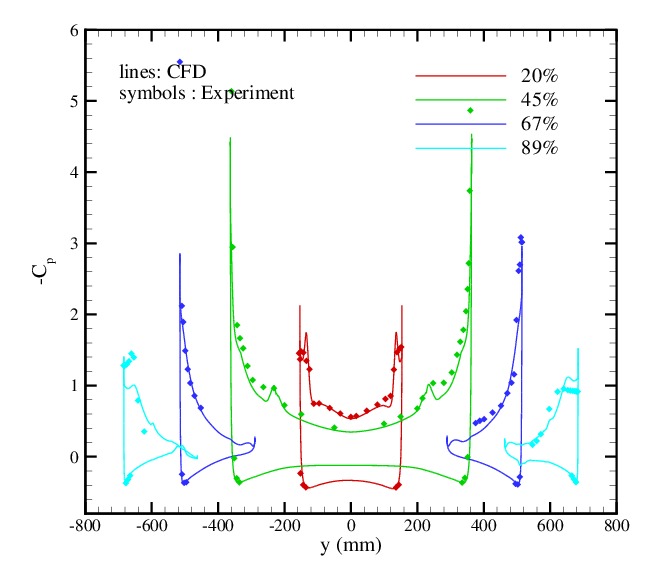

LOBmin20_ROBplus20



Pressure coefficient with left outboard flap deflection -20 degrees and right outboard flap deflection +20 degrees at alpha 15 degrees angle of attack.

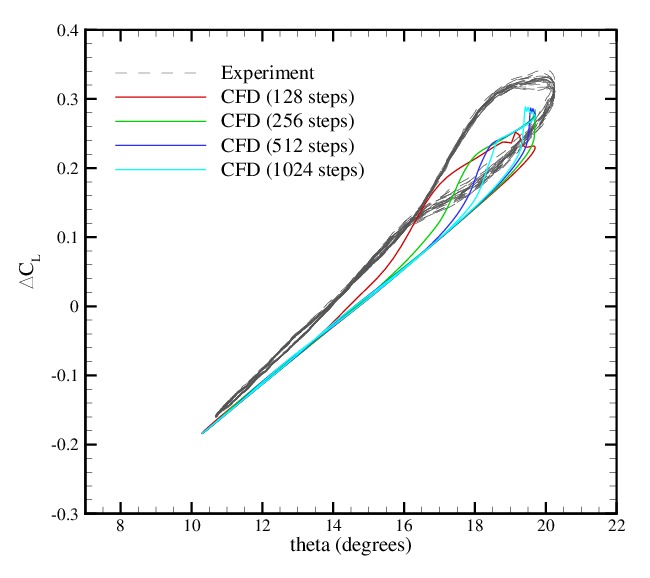

lift



Lift coefficient for pitching motion at nominal angle of attack 15 degrees.

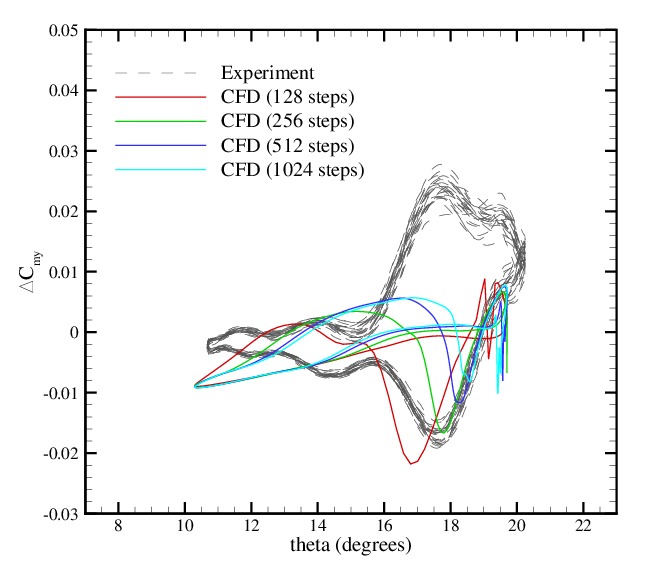

mom



Pitching moment coefficient for pitching motion at nominal angle of attack 15 degrees.

References

More details can be found in the following publications:

Conference Papers

  • Kennett, D. J., Hoholis, G., Badcock, K. J., "Numerical Simulation of Control Surface Deflections over a Generic UCAV configuration at Off-design Flow Conditions," 32nd AIAA Applied Aerodynamics Conference, Atlanta, Georgia, June. 2014.
    AIAA Paper 2014-2134
